Raybaca RBC-S03 RFID Reader

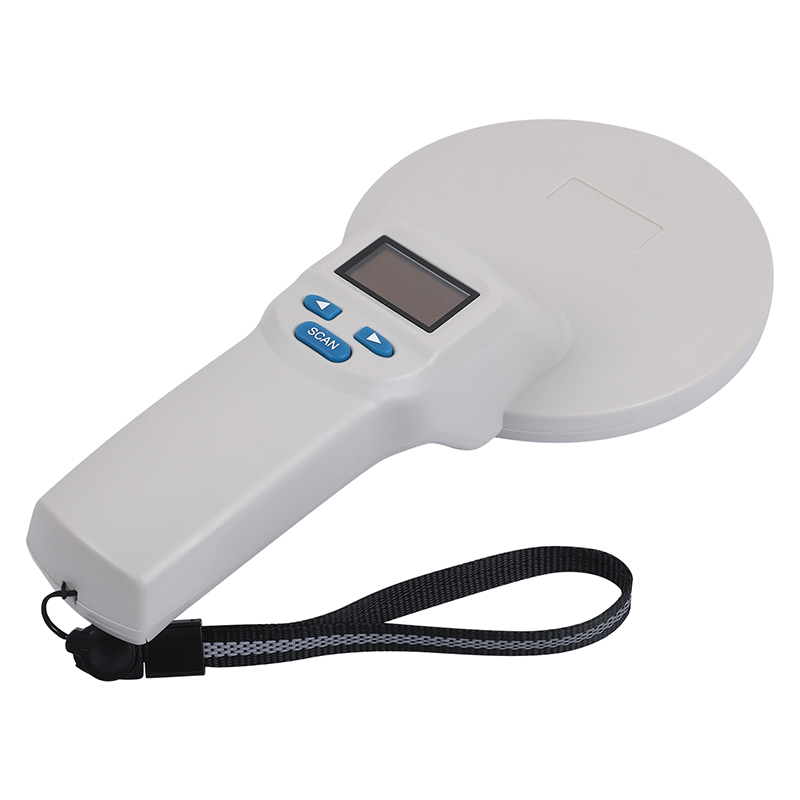

RBC-S03 Handheld RFID Reader

RBC-S03 RFID Reader is a low frequency tag reader that using wireless identification technology and it supports reading EMID, FDX-B(ISO11784/85) etc. tag.

RBC-S03 using high brightness OLED display screen, and can be seen clearly inside the house or under the strong light outside. It can store up to 6000 tag information with its built-in memory, users can send the information to the computer through USB cable or wireless connection to manage data.

This product is stable and easy to use, it can be used for animal management, resource management, railway inspection etc..

Send Inquiry

Description

RBC-S03 Handheld RFID Reader adopt 125KHz ISO11784/5White Large Round FDX-B LF Animal ID Chip Handheld Electronic Chip Reader for Animal Management is a low frequency tag reader that using wireless identification technology and it supports reading EMID, FDX-B(ISO11784/85) etc. tag.

A RFID Reader is a device that uses radio-frequency waves to wirelessly transfer data between itself and a RFID tag/label in order to identify, categorize and track assets. When combined with the right RFID software, a RFID reader can identify objects quicker, more accurately, at a reduced overall cost, and at various points of the object’s lifecycle.

Main specifications:

Frequency: 134.2Khz/125Khz
Tag Format: EMID、FDX-B(ISO11784/85)
Reading/writing disatnce: 2*12mm glass tag>15cm, 30mm ear tag>25cm
Reading access time: <100ms
Signal indicator: 128*64 high brightness OLED、buzzer
Power: 3.7V(3 AA batteries)
Power consumption: Working:0.9W Standby:0.04W
Storage capacity: 20000 information(tag coding+time)
Connection: USB2.0,wireless USB HID(optional), Bluetooth(optional)
Storage time: >20 years
Weight: 300g (without battery)
Work temperature: -10℃～50℃
Storage temperature: -30℃～70℃
Language: English/Customized

Product Advantages:

Using high brightness OLED display screen, and can be seen clearly inside the house or under the strong light outside
Can store up to 20000 tag information with its built-in memory
Users can send the information to the computer through USB cable or Bluetooth wireless connection to manage data
Supoort of the encryption algorithm can be customized to realize one-to-one encryption with the label
Stable and easy to use, it can be used for animal management, resource management, railway inspection etc.
